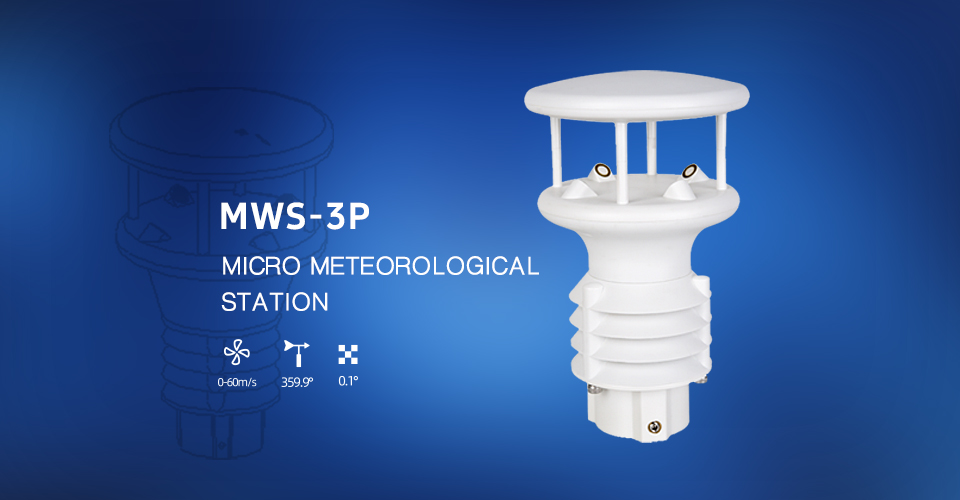

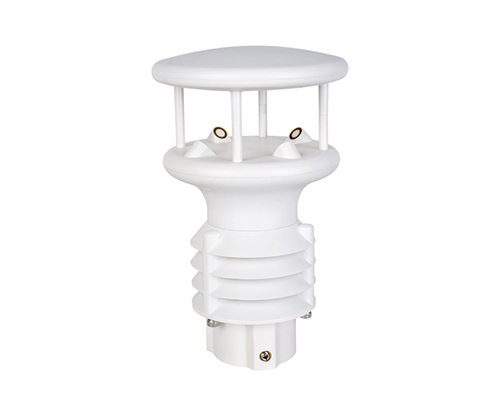

MWS-3P Micro Meteorological Station
Micro meteorological station
MWS-3P adopts a new type of anti pollution and corrosion-resistant material, with a sturdy structure, no moving parts, all-weather operation, easy installation and maintenance free, and more compact, lightweight, and economical. It can be applied to meteorological monitoring, urban environmental monitoring, wind power generation, power safety monitoring and other occasions. The product is developed based on the most mainstream measurement theory, with stable and reliable performance. It can simultaneously measure three main meteorological parameters (up to six for the high-end version), including wind speed, wind direction, and atmospheric pressure (the high-end version can adjust temperature, humidity, and rainfall). Each device and meteorological parameter are calibrated by the measuring station of the Meteorological Detection Center of the China Meteorological Administration before leaving the factory.
* Equipment features
-
Wind speed 0-60m/s -
Wind direction 359.9 ° -
Resolution of 0.1 ° -
Working pressure 12V~30VDC -
Working current< 15mA@12V -
Protection level IP66
-
Ultrasonic measurement principle, fast measurement response and high accuracy; Pressure resistance measurement principle, advanced quality control program, high data accuracy and stability;
-
Rs485 and other data interfaces, no mechanical moving parts, maintenance free; High protection level, suitable for a wide temperature range and harsh environments.
TECHNICAL INDEX
TECHNICAL INDEX
| Measurement elements | Range | Measurement elements | Range |
|---|---|---|---|
| Wind speed | 0~60m/s | Accuracy | ±0.3m/s |
| wind direction | 0~359.9° | Accuracy | ±3m/s |
| Air pressure | 10hPa~1100hPa | Accuracy | ±0.3hPa |
