Intelligent ultrasonic wind measurement instrument

The DYUWS-100 two-dimensional intelligent ultrasonic wind measurement instrument is a precise new type of intelligent ultrasonic sensor that can output three elements: wind speed, wind direction, and ultrasonic virtual temperature. It can be applied in situations that require precise measurement and research of wind fields, such as meteorological monitoring, low altitude aircraft navigation support, bridge and tunnel, environmental monitoring, etc. The CTUWS-01 can interact with data collectors, data centers, and PCs through Wi Fi, 4G, serial ports, and other methods to meet multiple communication needs. The entire sensor has no moving parts, and the special anti-corrosion treatment of its metal shell and probe greatly enhances the service life and data accuracy of the equipment. Combined with advanced and industry standard algorithms, it can eliminate the influence of temperature, humidity, and atmospheric pressure changes on wind speed and direction measurement, and can work 24/7 without regular maintenance

* Equipment features

Wind speed 0-75m/s
Wind direction 360 °
Resolution 0.1 °

Ultrasonic Wind Single Page Download Materials

Ultrasonic measurement principle, fast measurement response and high accuracy! Stainless steel material application, sturdy and corrosion-resistant No mechanical moving parts, maintenance free
Multi level heating mode (optional) to prevent freezing High protection level, suitable for a wide temperature range and harsh environments

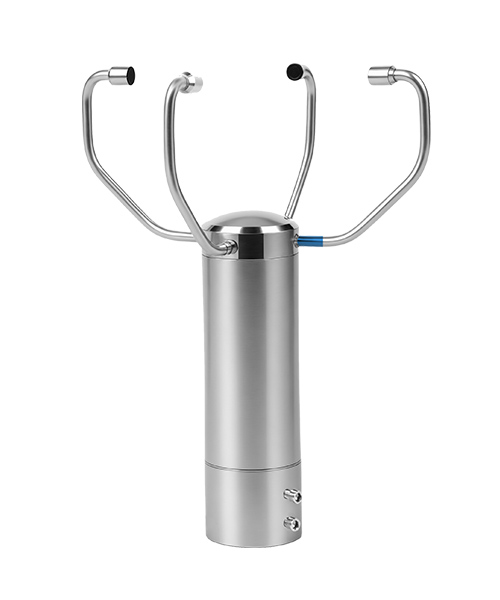

Proto graph

TECHNICAL INDEX

Measurement elements	Range	Measurement elements	Range
Wind speed measurement range	0 m/s~75m/s	Wind direction measurement range	0~360°
Maximum allowable error of wind speed	+0.1m/s(<5m/s )，+2%(>5m/s)	Maximum allowable error of wind direction	±2°
Wind speed resolution	0.01 meters per second	Wind direction resolution	0.1°
OUTPUT FREQUENCY	Maximum 8Hz	Boot threshold	0.01 meters per second
