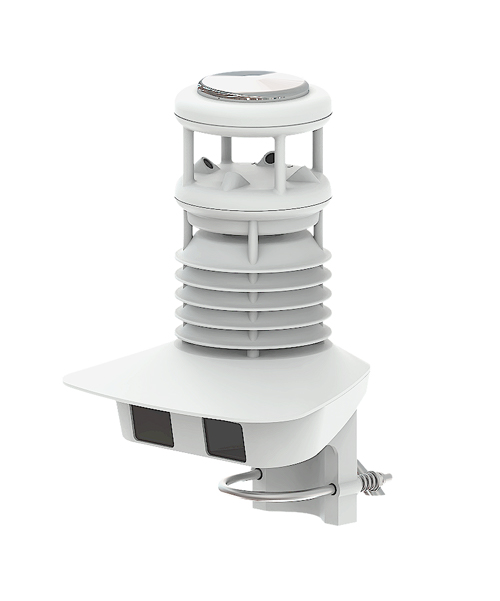

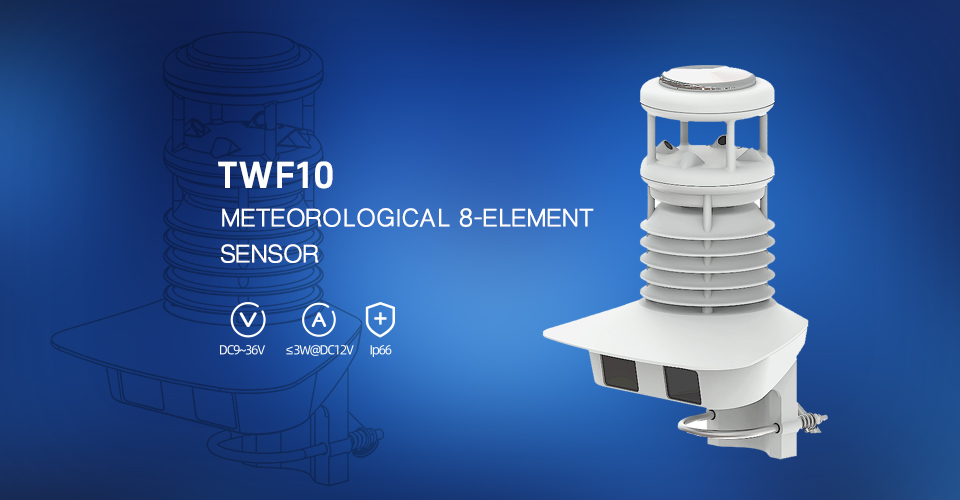

TWF10 sensor
The TWF10 sensor is a new generation product that integrates sensor technology, digital electronic technology, and embedded technology. It can achieve real-time remote monitoring of various meteorological elements such as atmospheric environment temperature, relative humidity, atmospheric pressure, wind speed, wind direction, rainfall, visibility, and road surface temperature. It can simultaneously collect data detected by sensors with different elements, analyze, process, store the data, and form a required data protocol for uploading. This device has the characteristics of high automation, simple and convenient operation, low power consumption, high reliability, and easy scalability, which can meet the requirements for stable and continuous meteorological support tasks.
* Equipment features
-
Temperature -40 ° C~+55 ° C -
Wind direction 0~360 ° -
Air pressure 500~1100hPa -
Rainfall: light rain to rainstorm -
Humidity 0%~100% RH -
Wind speed 0~60m/s -
Visibility ranging from 10 to 5000m -
Road surface temperature -40~+80 ° C
-
You can set and view device information such as site, district station number, and equipment number Time, latitude and longitude, magnetic declination angle can be set and viewed, and initialization settings can be made;
-
Built in quality control algorithm program, 4G and WiFi communication Protection level: IP66
TECHNICAL INDEX
TECHNICAL INDEX
| Measurement elements | Range | Resolution | Remark |
|---|---|---|---|
| Air pressure | 500hPa~1100hPa | 0.1hPa | |
| Temperature | -40C~+55C | 0.1℃ | |
| Dew point temperature | -60°C~50℃ | 0.1℃ | |
| Wind direction | 0~360° | 3℃ | |
| Wind speed | 0~60m/s | 0.1m/s | |
| Precipitation | Tipping bucket: rain intensity 0~4mm/min | 0.1mm | |
| Precipitation | Weighing: 0~200mm | 0.1mm | |
| Visibility | 10~5000m | 1m | |
| Surface temperature | -40°C~80℃C | 0.1℃ |
