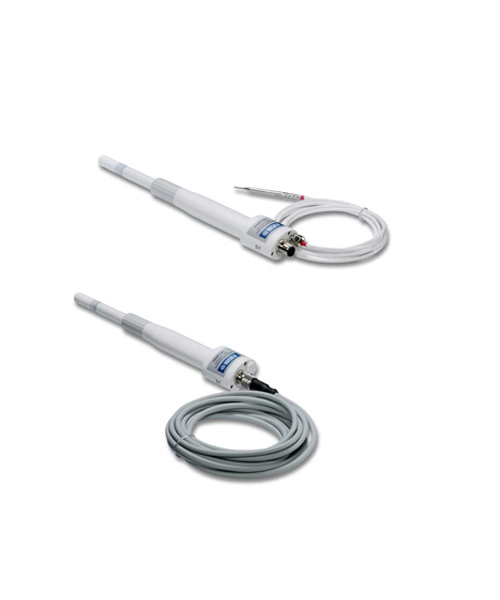

Temperature and humidity sensor

Temperature and humidity sensors include platinum resistance temperature sensors, capacitive humidity sensors, and high-performance, WMO compliant temperature and humidity measurement sensors. The four wire platinum resistance temperature measurement principle is adopted, and its core component adopts a platinum resistance (PT100) sensor that meets the highest level AA standard of IEC60751, with a protection level of IP66. It has the characteristics of high reliability, good accuracy, strong adaptability, and easy maintenance.

* Equipment features

Temperature -50~+50 ℃
Water temperature -10~+60 ℃

Platinum resistors comply with the highest level AA standard of IEC60751 High protection level, reaching IP66 level High precision, small time constant
Compact, plug and play, easy to maintain Has excellent interchangeability and long-term stability

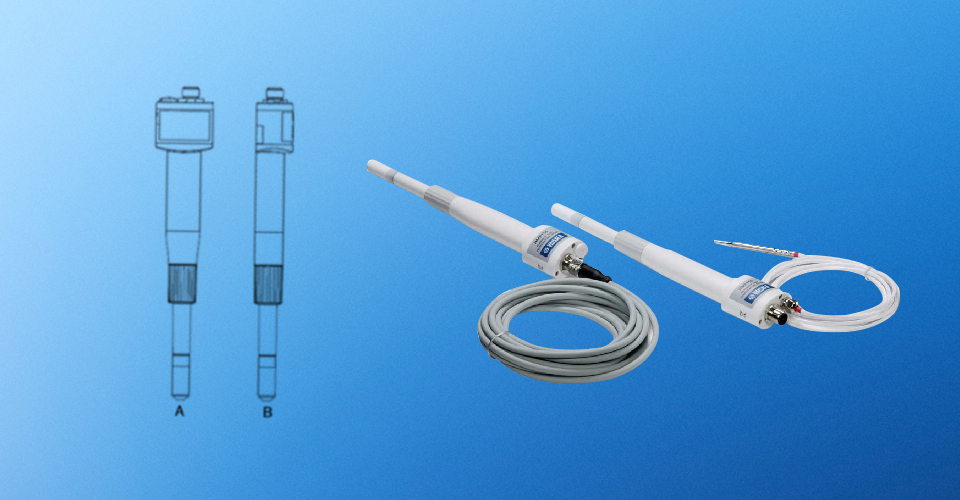

Proto graph

TECHNICAL INDEX

Measurement elements	Range	Measurement elements	Range
Measurement elements	0~100%RH	Temperature measurement range	-40°~60°C
Maximum allowable temperature error	±2%RH(≤80%)，±3%RH(≥80%)	Maximum allowable humidity error	±0.2°（0~40°），±0.4°（-40~60°）
Temperature resolution	0.1%RH	Humidity resolution	0.1°C
stability	±2% RH@2 year	stability	7~28VDC
Power consumption	Average value:< 3mA	Power consumption	Average value:< 3mA (RS485 output)
