tipping bucket rain sensor

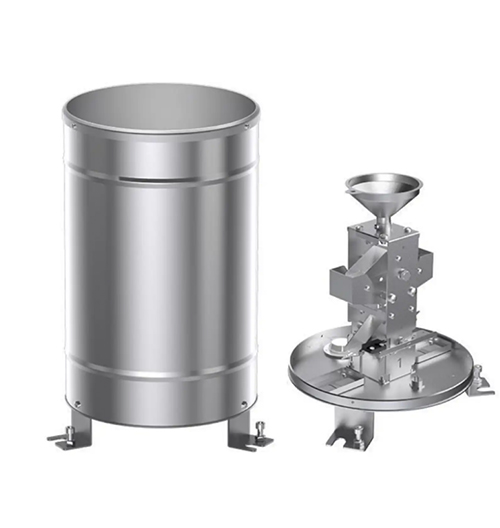

Intelligent tipping bucket rainfall monitoring station

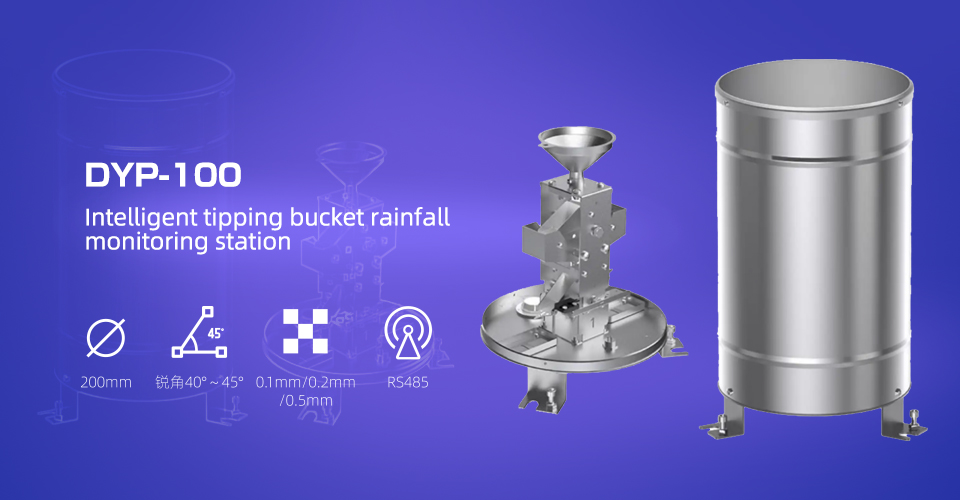

The DYP - 100 intelligent tipping - bucket rainfall monitoring station is primarily made up of the SL3 - 1 rainfall sensor, which has already been granted the license for the use of meteorological special technical equipment, and the intelligent integrated processor independently developed by our company. This intelligent integrated processor is a novel and intelligent device that combines multiple functions, including rainfall data collection, calculation, quality control, storage, transmission, and management. It comes with built - in capabilities such as Wi - Fi networking, 4G and serial port communication, remote upgrade, self - diagnosis, and self - recovery functions. The intelligent tipping - bucket rainfall monitoring station boasts reliable performance, high accuracy, easy maintenance, and effortless backup. As a result, it can thoroughly satisfy the rainfall monitoring demands in various fields, such as meteorology, environment, scientific research, smart cities, and oceans.
* Equipment features
-
Inner diameter dimension 200mm -
Acute angle of the cutting edge40～45° -
0.1mm -
Wi-Fi、All-network compatible4G、 Serial port（RS232、RS485)
-
Adopting a double tipping bucket design for high measurement accuracy; The shell is made of stainless steel, with strong rust prevention ability and good appearance quality;
-
The rainwater receiving port is made of stainless steel sheet by integral punching and pulling, with high smoothness and small error caused by water, Small in size, easy to install, and easy to maintain.
TECHNICAL INDEX
TECHNICAL INDEX
| Measurement elements | Range | Measurement elements | Range |
|---|---|---|---|
| Inner diameter size of water outlet | Φ200mm | The acute angle of the cutting edge of the rain receiving opening | 40°～45° |
| Measurement range | 0 mm/min~4 mm/min | Maximum allowable error | ±0.4 mm（≤10 mm）， ±4％（＞10 mm） |
| Rsolution | 0.1mm | Transmission mode | Wi-Fi、All-network compatible4G、 Serial port（RS232、RS485) |
| Operation temperature | 0~60°C | Stability | The deviation within one year is within the maximum allowable error. |
