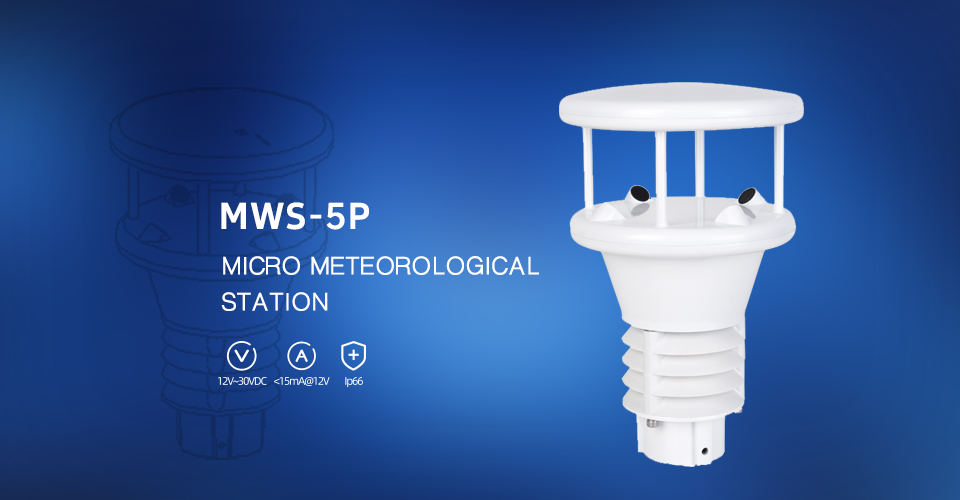

MWS-5P Micro Meteorological Station
Micro meteorological station
MWS-5P is a micro meteorological station designed with a compact and lightweight steel structure, which can be used to measure five important meteorological parameters, including wind speed, wind direction, temperature, humidity, and atmospheric pressure. The sensor has no moving parts, is resistant to pollution and corrosion. It can work 24/7, accurately measure and provide reliable data without the need for regular maintenance. Each device and meteorological parameter are calibrated by the standard instrument of the China Meteorological Administration Meteorological Observation Center before leaving the factory.
* Equipment features
-
Wind speed 0-60m/s -
Wind direction 359.9 ° -
Resolution of 0.1 ° -
Working temperature -40 ° C~85 ° C -
Working humidity 5%~100% RH -
Working pressure 12V~30VDC -
Working current< 15mA@12V -
Protection level Ip66
-
Ultrasonic measurement principle, fast measurement response and high accuracy; Pressure resistance measurement principle, advanced quality control program, high data accuracy and stability;
-
The diode voltage method has high accuracy and small time constant; Rs485 and other data interfaces, no mechanical moving parts, maintenance free; High protection level, suitable for a wide temperature range and harsh environments.
TECHNICAL INDEX
TECHNICAL INDEX
| Measurement elements | Range | Measurement elements | Range |
|---|---|---|---|
| Wind speed | 0~60m/s | Accuracy | ±0.3m/s |
| Wind direction | 0~359.9° | Accuracy | ±3m/s |
| Temperature | -40°C~80°C | Accuracy | ±0.3°C |
| Humidity | 0%~100%RH | Accuracy | ±2%RH |
| Air pressure | 10hPa~1100hPa | Accuracy | ±0.3hPa |
