Intelligent air pressure measuring instrument

Barometric pressure gauge

DYB-100 Intelligent Barometer (hereinafter referred to as "Intelligent Barometer") is an intelligent device that integrates data acquisition, calculation, storage, transmission, management and other functions. It is suitable for government and public institutions, equipment integrators, scientific researchers and other users in the fields of meteorology, environment, scientific research, smart cities, oceans, etc. It can fully meet the full chain management of real-time and high-precision atmospheric pressure data. Has strong data interaction capabilities and can simultaneously interact with intelligent integrated processors, data application platforms, traditional data collectors, debugging computers, etc. through Wi Fi, 4G, RS232 serial ports, etc.

* Equipment features

Air pressure range 500hPa~1100hPa
Working voltage 9V~15VDC
Working current< 30mA@12V
Protection level Ip65

Using high-precision pressure-sensitive components and advanced quality control programs, High data accuracy and stability; High integration, hardware performance fully supports software systems Application, meeting data processing and interaction needs;
Strong data interaction and compatibility capabilities, through Wi Fi, 4G RS232 serial port and other data exchange with traditional data collectors; Beautiful and durable: adopting a streamlined appearance and high-quality products Made of high-quality shell material, the product has a beautiful appearance.

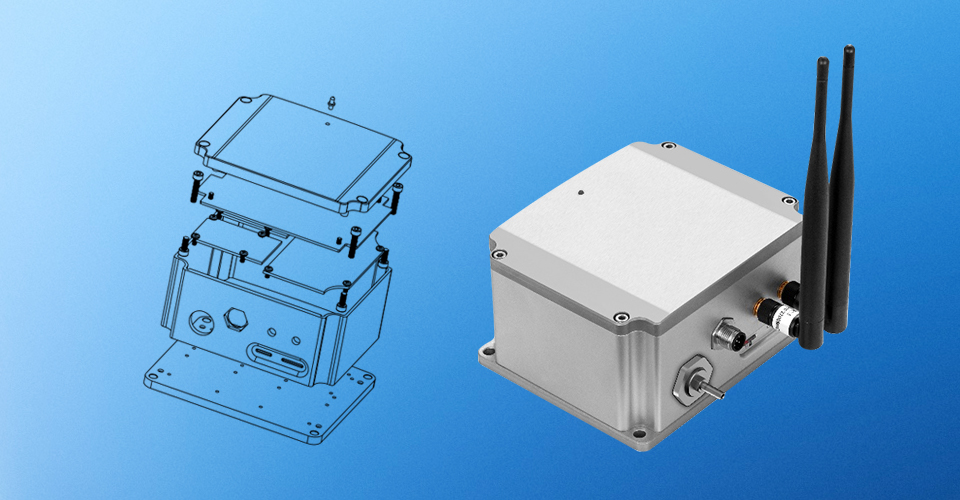

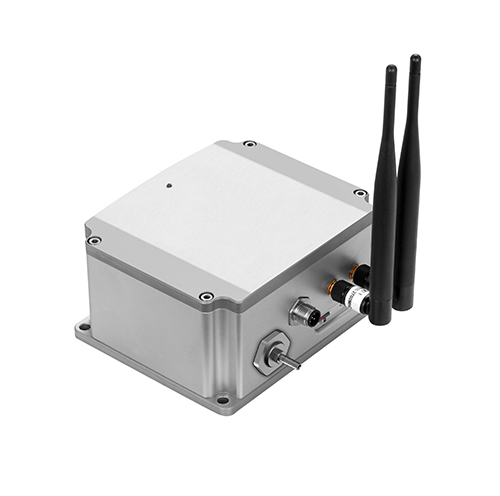

Proto graph

TECHNICAL INDEX

Measurement elements	Range	Measurement elements	Range
Measurement elements	500hPa~1100hPa	Long term stability	士0.10hPa/Year
Resolution	0.1hPa	Response time (B-level)	1s
Communication interface	RS232、4G、Wi-Fi	Working current	<30mA@12V
Working voltage	9V~15VDC	Protection grade	IP65
Operation temperature	-40°~+60°C	maximum permissible error	士0.2hPa

Product Recommendations

Recommended products

Recommended software and hardware configuration for provincial conventional meteorological observation stations

Provincial regular meteorological observation stations (formerly known as "regional automatic meteorological stations", hereinafter referred to as "provincial regular stations") are meteorological observation stations that are encrypted and constructed in a representative region according to the monitoring, early warning and forecasting services of small-scale catastrophic weather and the needs of local economic and social development. Provincial regular stations use automatic observation of basic meteorological elements such as precipitation, wind direction, wind speed, temperature, humidity, and air pressure as a means to provide regional high spatiotemporal resolution observation data on small-scale catastrophic weather, local environment, and regional climate. They are an important supplement to national meteorological observation stations.
